Laser Welded Saw Blade

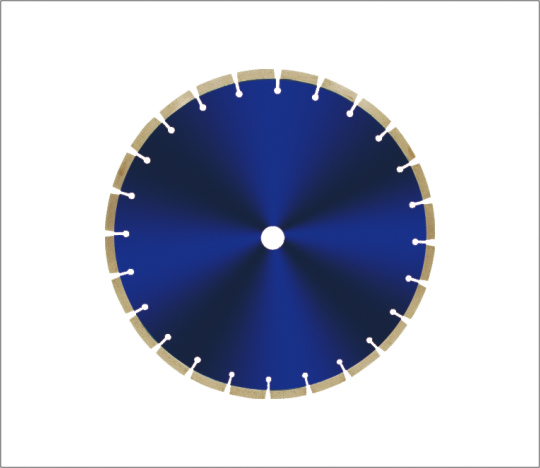

Cured Concrete Blade
| Item No. | Diameter | Teeth Width | Teeth Height | Teeth Number | Arbor |
| JCB300 | 12”(300mm) | 3.0mm | 10mm | 21 | 25.4mm |
| JCB350 | 14”(350mm) | 3.2mm | 10mm | 24 | 25.4mm |
| JCB400 | 16”(400mm) | 3.6mm | 10mm | 28 | 25.4mm |
| JCB450 | 18”(450mm) | 3.8mm | 10mm | 32 | 25.4mm |
| JCB500 | 20”(500mm) | 4.0mm | 10mm | 36 | 25.4mm |
| JCB600 | 24”(600mm) | 4.6mm | 10mm | 42 | 25.4mm |
Application:
Mainly used for cutting concrete, tile, brick, block, pavers, stone and masonry. Fast, speed, good life.
Segment can be normal type, turbo type or twin type. Other sizes can be provided upon request.
Machinery: Handheld saw, walk-behind saw or table saw. Dry or wet use.

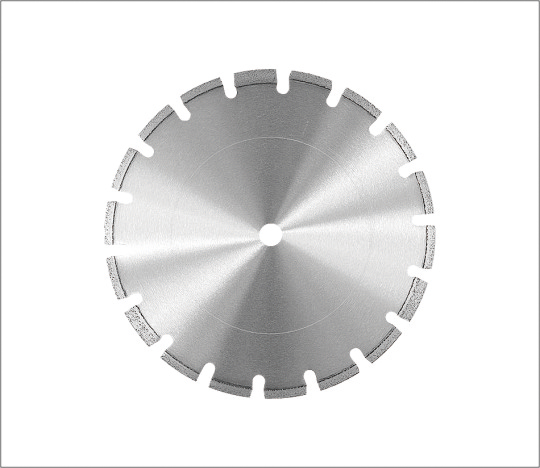

Asphalt And Green Concrete Blade
|
Item No. |
Diameter |
Teeth Width |
Teeth Height |
Teeth Number |
Arbor |
|
JCB300 |
12”(300mm) |
3.0mm |
10mm |
21 |
25.4mm |
|
JCB350 |
14”(350mm) |
3.2mm |
10mm |
24 |
25.4mm |
|
JCB400 |
16”(400mm) |
3.6mm |
10mm |
28 |
25.4mm |
|
JCB450 |
18”(450mm) |
3.8mm |
10mm |
32 |
25.4mm |
|
JCB500 |
20”(500mm) |
4.0mm |
10mm |
36 |
25.4mm |
|
JCB600 |
24”(600mm) |
4.6mm |
10mm |
42 |
25.4mm |
Application:
Mainly used for cutting asphalt, green concrete and abrasive materials. Deep drop or slant segments can provide under-cut protection to extend the blade life.
Wide U slots is designed specially for fast cutting. Other size can be provided upon request..
Machinery: Handheld saw, walk-behind saw or table saw. Dry or wet use.

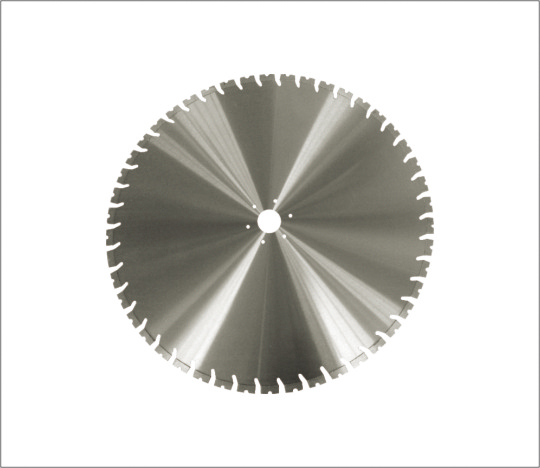

Wall Saw Blade
|
Item No. |
Diameter |
Teeth Width |
Teeth Height |
Teeth Number |
Arbor |
|
JWA500 |
20”(500mm) |
4.0mm |
13mm |
36T |
50mm |
|
JWA600 |
24”(600mm) |
4.6mm |
13mm |
36T |
50mm |
|
JWA700 |
28”(700mm) |
4.6mm |
13mm |
42T |
50mm |
|
JWA800 |
32”(800mm) |
4.6mm |
13mm |
46T |
50mm |
|
JWA900 |
36”(900mm) |
4.6mm |
13mm |
50T |
60mm |
|
JWA1000 |
40''(1000mm) |
4.6mm |
13mm |
55T |
60mm |
|
JWA1100 |
44”(1100mm) |
4.6mm |
13mm |
60T |
60mm |
|
JWA1200 |
48”(1200mm) |
4.6mm |
13mm |
65T |
60mm |
|
JWA1400 |
56”(1400mm) |
4.6mm |
13mm |
75T |
60mm |
|
JWA1500 |
60”(1500mm) |
4.6mm |
13mm |
80T |
60mm |
|
JWA1600 |
64”(1600mm) |
4.6mm |
13mm |
85T |
60mm |
Application:
Mainly used for cutting concrete wall, reinforced concrete wall or block wall.
Segments can be with one or two notches which provide even faster cutting and good life.
The design of beveled wide U slot can reduce distortion of the core body effectively when cutting.
Machinery: Wall saw. Wet use.
